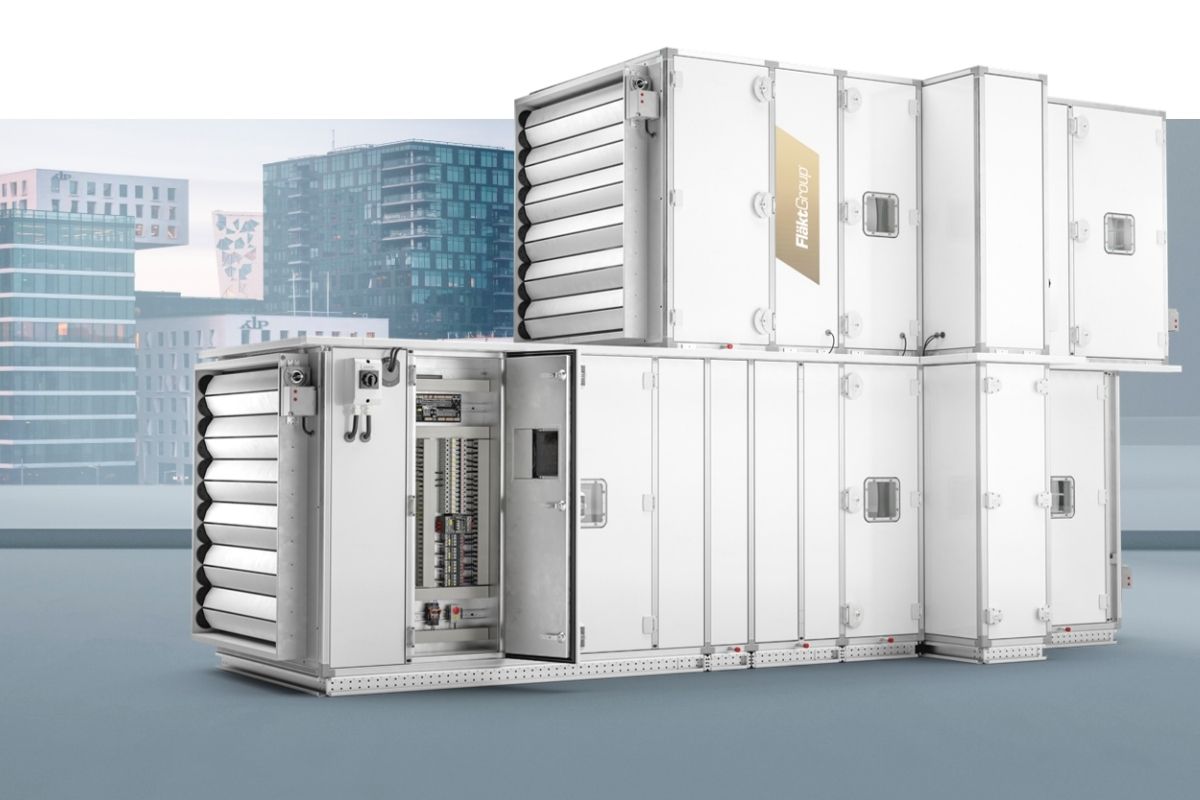

CAIRplus AHU

CAIRplus landing page image

CAIRplus - Premium modular air handling units for maximum flexibility and efficiency



CAIRplus is a customised premium collection of modular air handling units designed to meet every customer’s specific needs.



At a glance:



  • Commercial, industrial and residential buildings – up to 100,000 m3/h airflow
  • Standard & complex projects with a wide range of control functions
  • Find the balance between quality, functionalities, standardisation, cost and life – cycle cost is key
  • When reliability is important – CAIRplus has proven quality and performance with more than 100,000 units delivered
  • Highly Flexible – High Quality – Integrated Controls

Flexibility as standard

Wide range of unit sizes, configurations, energy recovery options

Optimised life cycle costs

Low installation, running and maintenance costs

Hygienic design

VDI 6022 & DIN 1946-4 compliant

T2/TB2/D1/L1 as standard

Integrated controls

Factory fitted controls

BMS systems and cloud remote control connectivity

Low risk

“Ready to use” with minimal assembly on-site

Customer Benefits

Building Owners

  • From residential to industrial – energy efficient Air Handling Units that suit the widest range of applications
  • VDI 6022 & RLT compliant
  • Maximise the return on investment in your building with optimal energy recovery and low operating costs
  • Increase the asset value with lower energy costs. ErP2018 compliant and fulfils new building and environmental certificates (LEED, Breeam, etc.)
  • Energy monitoring and communication for optimised operations
  • Part of FläktGroup’s market-leading product portfolio of ventilation solutions
  • DIN1946 and ATEX solutions available.

Consultant

  • World class energy efficiency – Low SFP Value to enable selection of smaller units
  • ErP compliant with high efficiency IE5
  • EC-motors and high sensible and latent energy recovery RegAsorp Wheel
  • VDI 6022 & RLT compliant
  • Huge range of unit sizes and configurations – maximum flexibility#
  • Integrated controls - enable specification of system with high energy efficiency and reliable operation

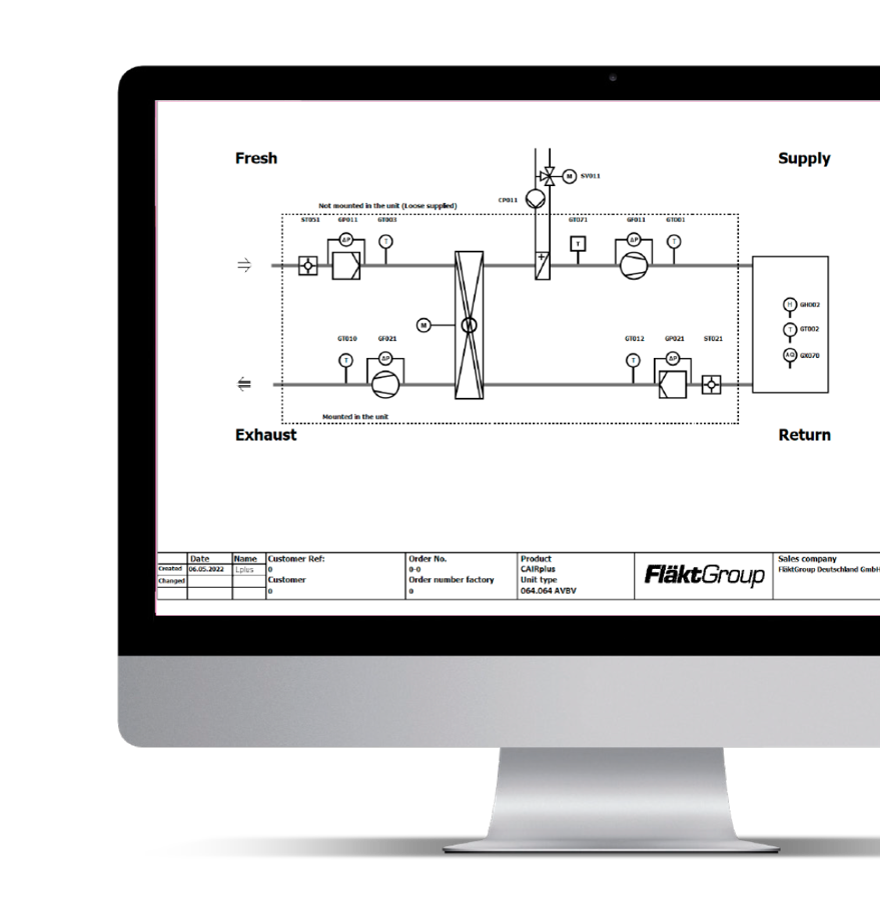

  • Easy to dimension, select and calculate in Lplus to fulfill project requirement – including the integrated controls.

Contractor/ Installer

  • Factory fitted integrated controls for fast and low-cost installation with less risk of on-site problems
  • Maximum flexibility to fit any installation
  • Fast delivery
  • Splitable casing to allow easy positioning into the equipment room
  • Quick and easy connection for control of heating and cooling coils
  • Comprehensive and user-friendly documentation
  • Commissioning support by FläktGroup is available
  • Large sales network is always available for quick support of your project.

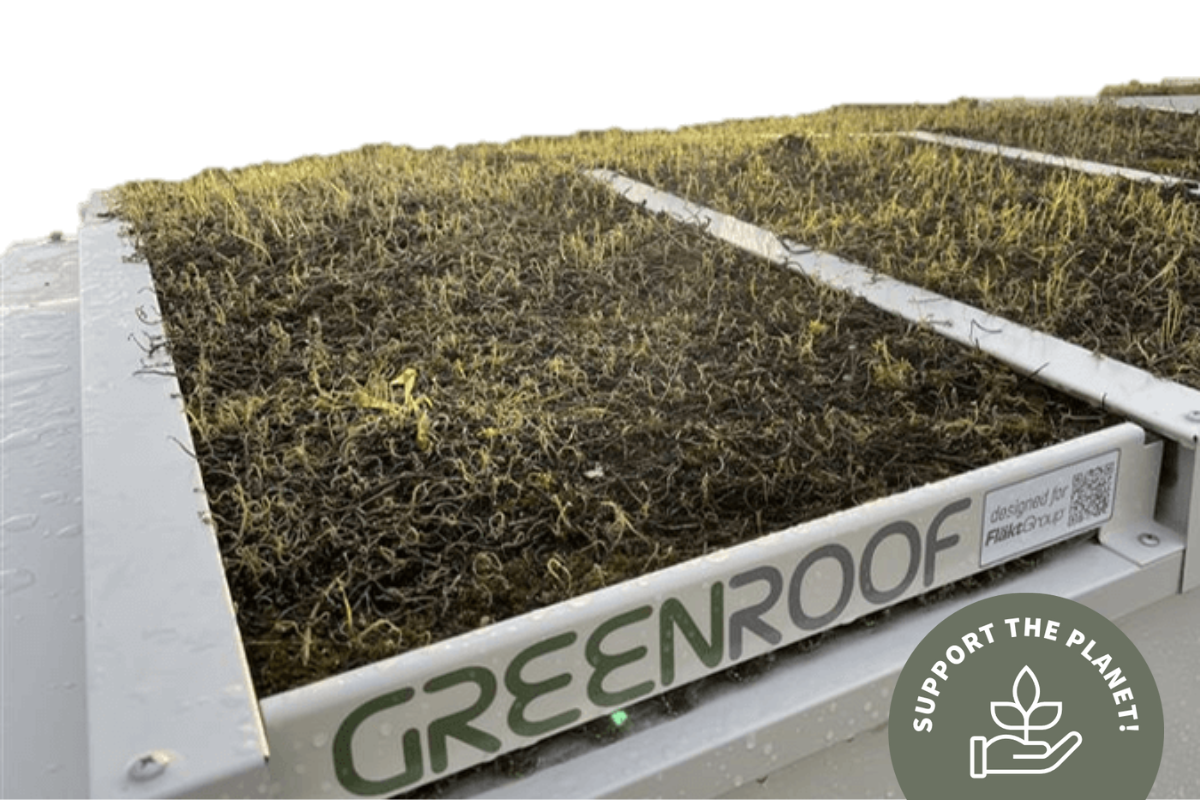

Green Roof now available



Supports directives and performance certifications:

  1. Energy Performance of Buildings Directive
  2. LEED Certification
  3. BREEAM
  • Better for the environment
  • Great for supporting wildlife
  • Increases the lifespan of the roof
  • Suitable for all roof variants, and can be assembled easily on site

green roof for CAIRplus AHU

Optimised Energy Recovery Options

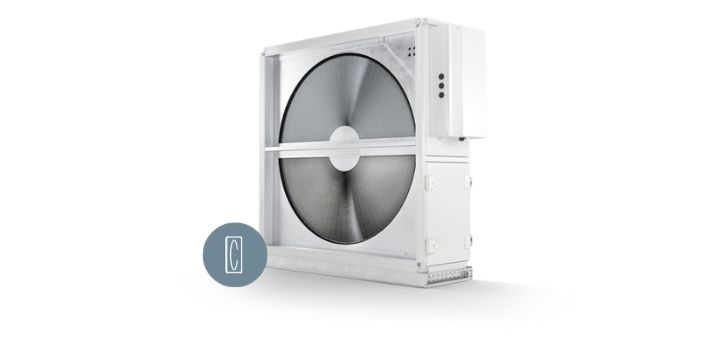

Ecorot Rotary Heat Exchanger

ECOROT

Rotary Heat Exchanger



Perfect for Commercial buildings such as Offices and Education. 270 mm wheel for highest efficiency in the smallest footprint.

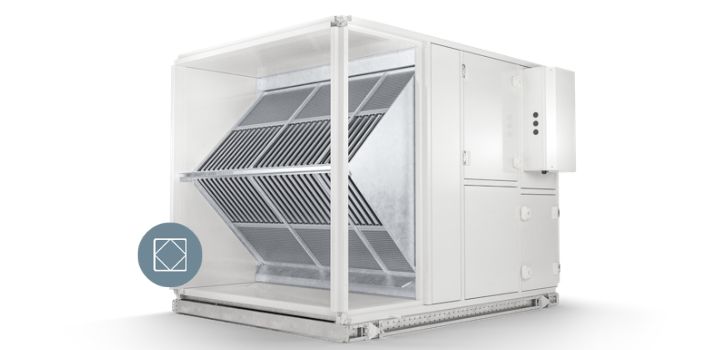

Ecoplat Counterflow Heat Exchanger

ECOPLAT

Counterflow Heat Exchanger



Natural choice for Residential buildings and restaurants.

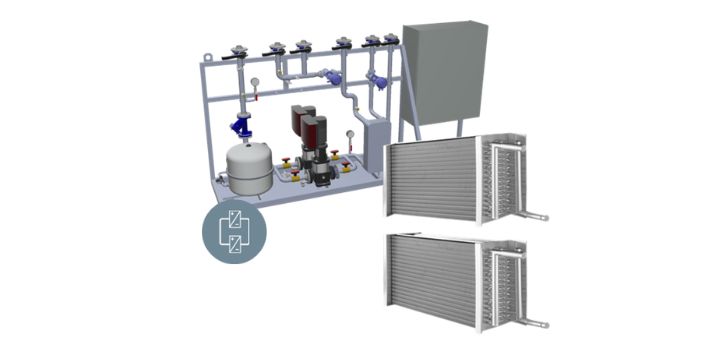

ECOFLOW & MULTIFLOW Run Around Coil Heat Exchanger

ECOFLOW & MULTIFLOW

Run Around Coil Heat Exchanger



For applications where airflow must be separate. Multiple pump and heat exchanger options available. Most efficient run around heat recovery solutions in the market.

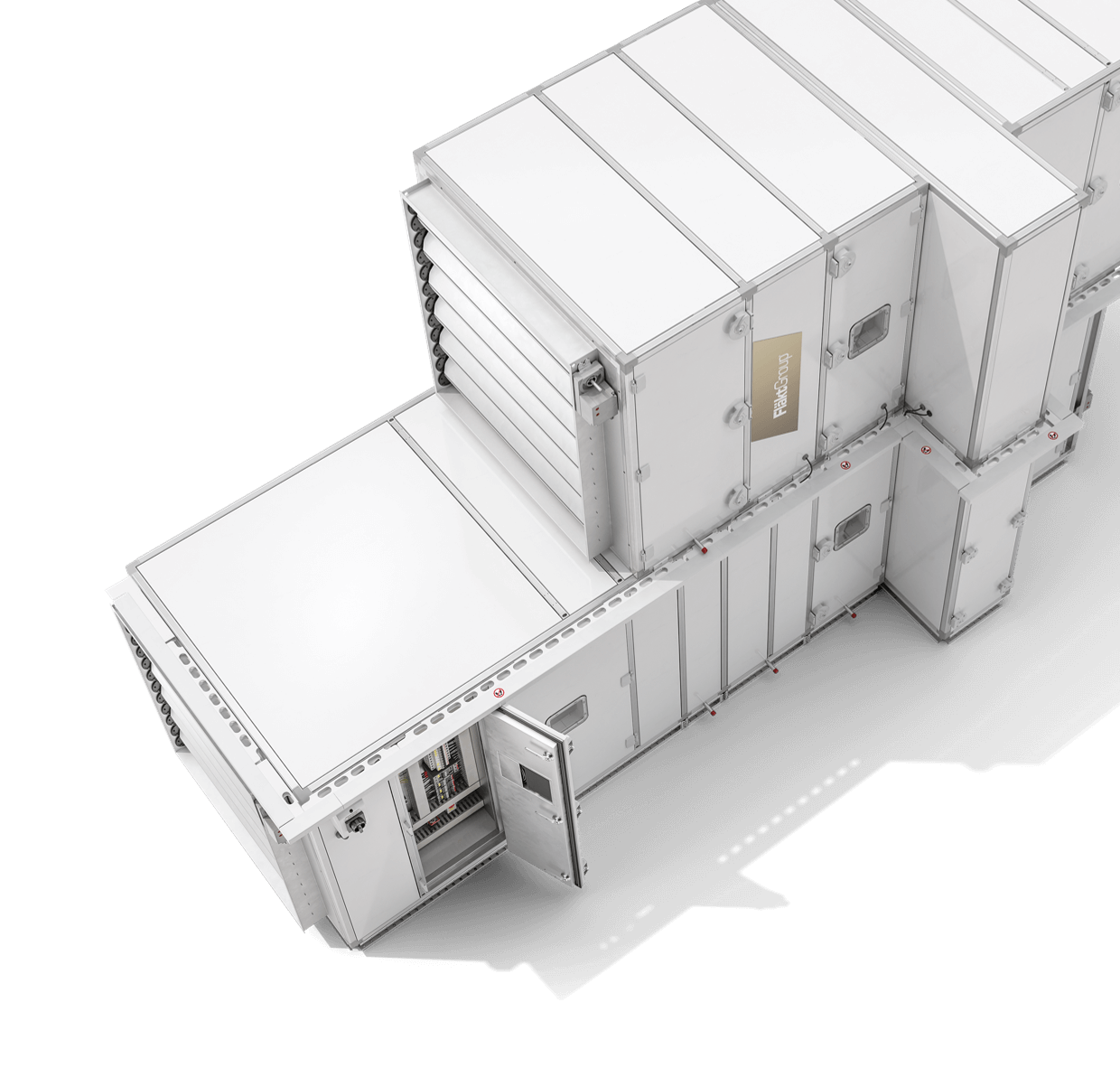

CAIRplus SX - Construction Details



80 mm base frame height

Unit width in modular grid: 640 mm > 3.120 mm

Unit height in grid dimension: 400 mm > 3.120 mm

Standard type according to VDI 6022, VDI 3803

Hygienic design according to DIN1946-4

Special types and special dimensions on request

Special design versions on request

EC Declaration of conformity for ATEX Applications

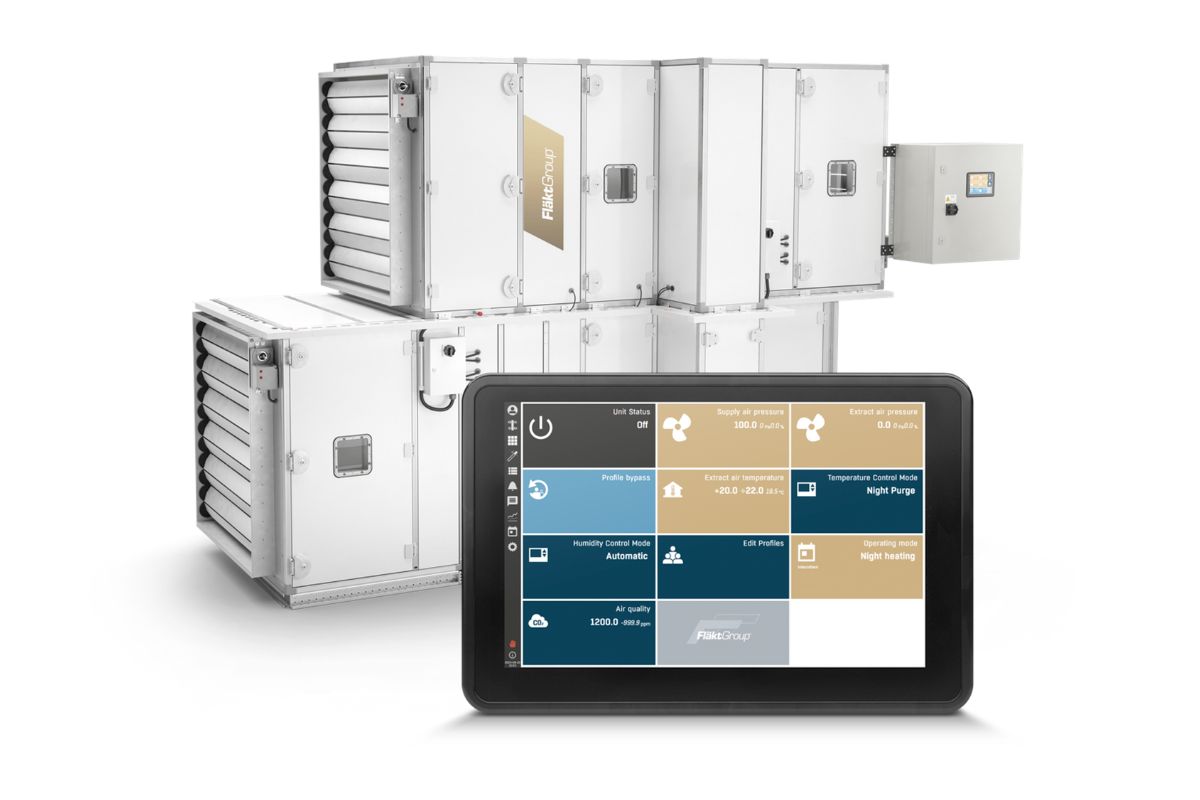

ISYteq 4.0 - A cutting-edge solution to Indoor Air Quality and energy efficiency



ISYteq 4.0 controls deliver benefits and unique functionality optimised for FläktGroup AHU’s.



  • Rotor pressure control
  • Fanwall redundancy control
  • Enthalpy control
  • Energy monitoring & cloud.
