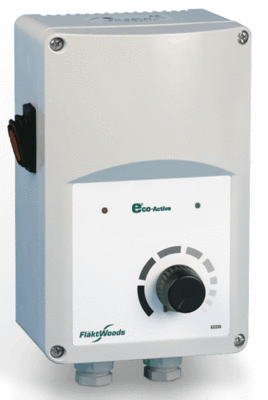

EEDS DEMAND SWITCHED ELECTRONIC DRIVE (SINGLE PHASE)

Fast facts

  • Switched control of fan speed. Infinitely variable from max to min with on/off switch
  • Supply: 230 VAC, 50/60 Hz, 1 Phase
  • IP 54 ingress protection
  • In built motor overheat protection via motor thermostats (Tk)
  • BMS enable/disable (Fault via Tk)
  • Two & Three wire control
  • Switched input / startup to front dial setting/ kick start: 6-7 sec. full speed
  • Minimum and maximum speed setting trimmers
  • Plastic enclosure (R-ABS, UL94-V0, grey RAL 7035), IP 54
  • Max ambient temperature: 50°C

Product information

Product description

The electronic speed controllers of the EEDS series control the speed of single phase voltage controllable motors (230 VAC, 50/60 Hz) by varying the supplied voltage. The controller has connections for motors equipped with thermostat (Tk) overheat protection (NC-contact). When overheating is detected power to the motor is stopped. The red indicator light and alarm output will signal this error condition (reset: main switch to off position and back). The working principle of this product series is based on zero crossing detection. An optotriac combined with a microprocessor ensures flawless and accurate control. OC (open contact - normal mode) and CC (closed contact - normal mode) inputs are provided for remote starting and stopping via thermostats, PIR and/or frost protection, etc. There is a potentiometer and a separate on/off switch with built-in illumination. The erminal board has a supplementary connection to branch off non-controlled 230 V. A safety isolator/switch disconnector should be installed on the mains side of all motor drives; refer to SISO.
