Fire Safety Basics. Part Two: Fire Damper Types, Control Systems for Fire Dampers, and Testing Fire Dampers and Smoke Extract Fans

There are two types of fire damper closing system: those with a fuse mechanism and those with an actuator, which is motorised, and to which you can connect a smoke detection system.  There are also two fire classes for dampers: E-class or EI-class.  With E-class dampers, it is necessary to insulate the ducts from fire, which is not necessary with EI-class dampers.



Figure 1 shows typical examples of the two types of fire damper.  On the left is a typical EI-classed fire damper with fusible link, which has insulation material in the casing and a damper blade to prevent heat transfer.  If the air temperature inside the damper reaches 70°C, the damper is closed by a mechanical spring.  Micro switches are used to indicate the position of the damper – either open or closed.



On the right in Figure 1 is a typical EI-classed motorised fire damper, providing the highest level of protection against the spread of both fire and smoke.  A smoke detector and/or other fire alarm system can send a closing signal to the damper.  Two integrated micro switches inside the actuator allow for an automated testing function.

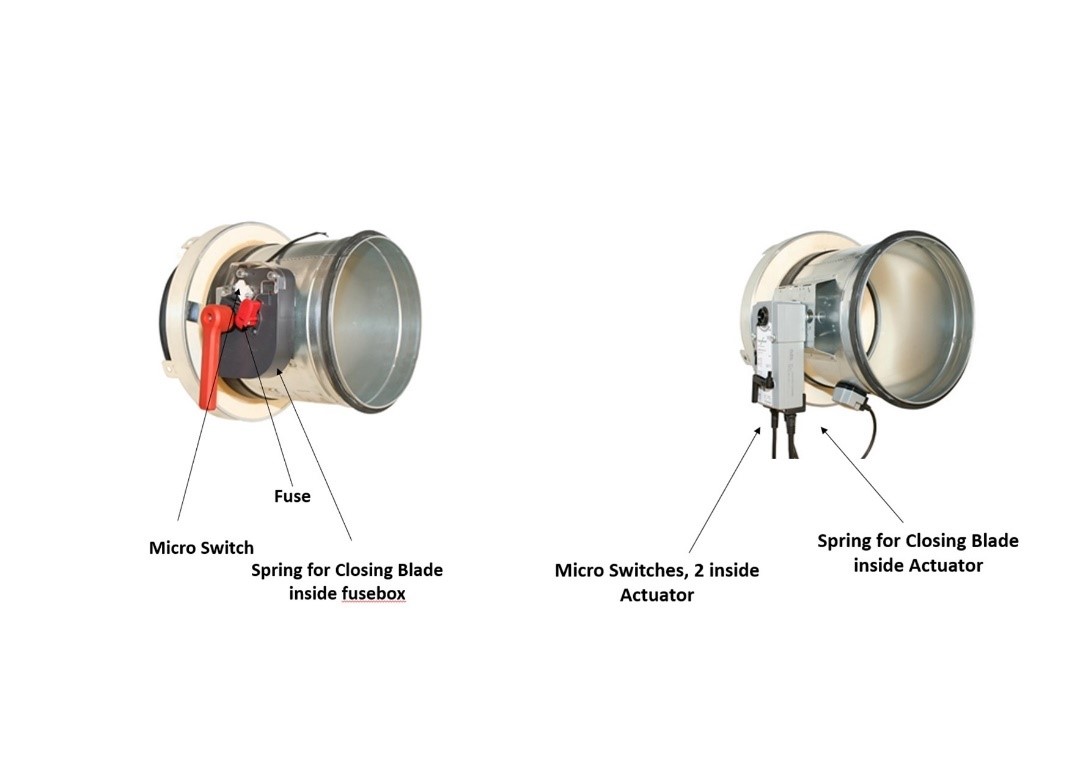

Figure 1: Typical fuse mechanism (left) and motorised (right) fire dampers



There are variations in the types of fire damper used in different countries.  For example, circular fire dampers are more common in Scandinavian countries, whilst rectangular models – normally more likely used for big airflow rates – are more common in Central Europe.





Control Systems for Fire Dampers



Because by their nature, fire dampers are passive products when there is no fire, normally staying in the open position, the control systems used on motorised dampers are crucial to allow regular and automatic function testing, to ensure that the damper will really close in the event of a fire.



Important aspects of the control system include easy connections for smoke detection, and an automatic damper function test, which indicates the position of the blade (i.e. open or closed)



A typical control system may have many different features, including:



• Status indication of fire damper (open/closed)
• Function test, both manual and automatic, which can have a test interval of between 24 hours and one week
• External fire alarm and interlocking inputs
• Fire alarm A and service alarm B outputs
• The option of connecting both thermal and smoke detectors
• The ability to use motorised dampers with 24v actuators





Fire Damper Tests



The European test standard for fire dampers is EN1366-2.  Tests are conducted in accredited testing laboratories (FläktGroup has its own FINAS-accredited fire laboratory at Toijala, Finland).



The test conditions for this standard include a temperature rise in the oven according to ISO 834-1, and  there must be an overpressure of 300Pa in the oven.



An E-class is determined by the measured leakage throughout the fire test.  The maximum leakage allowed in E-class is 100 litres per second per square metre (l/s/m2), whilst for S-class it is 55 l/s/m2.



EI-class dampers also have to pass a temperature criteria, with the temperature on the cold side not exceeding 180°C.



Fire dampers are CE-marked according to European Product Standard EN15650; national certificates for fire dampers are no longer accepted.  Similarly, smoke control dampers are CE-marked according to European product Standard EN12101-8, and smoke control ducts according to European Product Standard EN12101-7





Smoke Extract Fan Tests



The European test standard for smoke extract fans is EN12101-3.  This standard includes all parts needed for CE-marking, and they are also conducted in accredited testing laboratories.



Criteria for meeting the standard include that fans must be tested according to the intended usage, an that the airflow must not decrease by more than 10% during the test.  In addition, the static pressure generated must not fall by more than 20% during the test, and in the case of an insulated fan, the temperature increase after a given period must not exceed 180°C.



There are different classes for smoke extract fans, depending on the minimum operating time at a given temperature rise.  The four classes are as follows:



• F200 classed fans are tested at a temperature rise of 200°C for a minimum operating time of two hours (120 minutes)
• F300 classed fans are tested at a temperature rise of 300°C for a minimum operating time of one hour (60 minutes).
• F400 classed fans are tested at a temperature rise of 400°C for a minimum operating time of two hours (120 minutes).
• F600 classed fans are tested at a temperature rise of 600°C for a minimum operating time of one hour (60 minutes).



In order to harmonise our offer both inside and outside Europe, FläktGroup F300 fans are tested to 300°C for two hours (120 minutes).  This is an enhancement to the EN standard with no knock-on cost to supplying one-hour rated equipment.
