Inwall FACINGS
These panels are made to cover existing walls in clean rooms and are mounted as drywall work.
- Inwall Click facings for clean rooms focus on minimizing the number of joints
- Panels maintain the rigidity and acoustic qualities within a clean room
- Easy and quick fixation to structural walls or construction by means of click profiles
- In combination with other systems (e.g. gypsum partition walls) Inwall Click facing meet increased fire resistance or sound insulation requirements
In breve
- Panel facing in zinc coated steel sheet with PES coating or stainless steel
- Custom design colours
- Reinforced with gypsum board
- Maximum dimension of panel (width or height) is 1.2 m or 4 m, depending on the type and combination of panel termination
- Various connecting parts and mounting accessories
- Panels are installed into stiffening profiles or a supporting grid made of profiles and crossbars
- Higher fire-resistance and X-ray protection is optional
- Certified according to the EN14190
Galleria prodotti
Informazioni prodotto
Descrizione prodotto

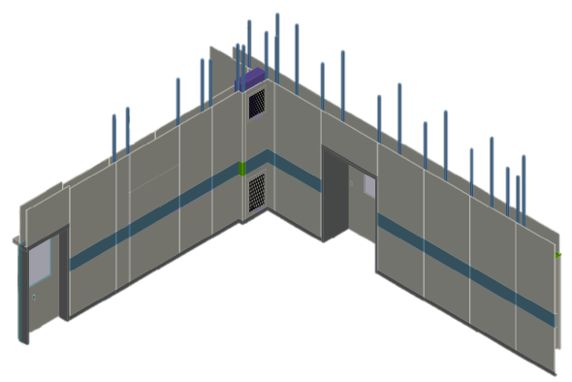

Inwall facing is used as a clean lining of brick partition walls or as a part of noise and fire-resistant partition walls.
Inwall systems include the following types:
- InWall Click
- InWall OT
- InWall OT+
The Inwall Click system consists of panels, click and stiffening profiles, flanging and finishing profiles, bottom guide and cover profiles. Panels can be used for facing of exisiting walls. In combination with other systems (e.g. gypsum partition walls) increased fire endurance or sound insulation requirements can be fulfilled.
Panels are fixed to structural wall or construction by means of click profiles or screws.
Guaranteed resistance to positive pressure of 200 Pa when Inwall Click and Inwall OT+ types used, InWall OT+ also suitable for negative pressure applications. Inwall Click and Inwall OT+ types are suitable for all classes of clean rooms.
